"The ultimate security system is one that informs you first"

A LoRaWAN security network on Telemetry2U's IoT platform gives you full control and piece of mind

LoRaWAN for Home & Business Security

It’s unfortunate, but home and business security has become an essential part of our lives. 2.4% of Australian housholds experienced at least one break-in from 2018 - 2019, chances are that sooner or later, it will happen to you.

There are plenty of alarm systems already on the market, each with advantages and disadvantages, but they usually serve a single purpose, monitoring your property and structures for tresspassers and unwanted entry. Alarm systems can be monitored by a third party, or not monitored at all. Since a lot of people tend to ignore sirens these days, most people absorb the monthly/annual expense of a monitored alarm.

Wireless alarms have recently grown in popularity due to the expense and complexity of wired alarm systems, but they can have limitations when it comes to range and sensor options. This especially comes into play on rural properties, where a shed may be a fair distance away from the house.

LoRaWAN used to Monitor Animal Water Troth Level

The ideal wireless alarm system would have a range large enough to cover a farm with a diversity of sensors to cover all situations. You want to be the first to be informed of some sort of intrusion, so you can decide what sort of corrective action you want to take. You need the ability to control the system remotely, from anywhere.

The Solution

Telemetry2U offers a robust alternative to standard solutions with a secure LoRaWAN network on the IoT cloud. It solves many short comings of other alarm systems. Our system covers all your monitoring requirements and leaves you with plenty of sensor options that can branch out to other applications that you might have in mind – like controlling your electric gate from your smart phone.

A gateway is required to receive the data from your security sensor network, where it is uploaded to Telemetry2U for processing.Gateways are available with a 4G backup connection, and you can even get a UPS to protect you against power outages UPS to protect you against power outages. Due to superior range of a LoRaWAN (up to 10km line-of-site and 100’s of meters indoors), you can cover huge areas. It is not uncommon for neighbouring properties to share a network, or even back-up each other’s network with a gateway each. If your gateway does happen go down for some reason, you’ll be notified immediately by with an email, SMS, or voice call depending on your plan and settings.

LoRaWAN IoT Gateway from Home & Business Security

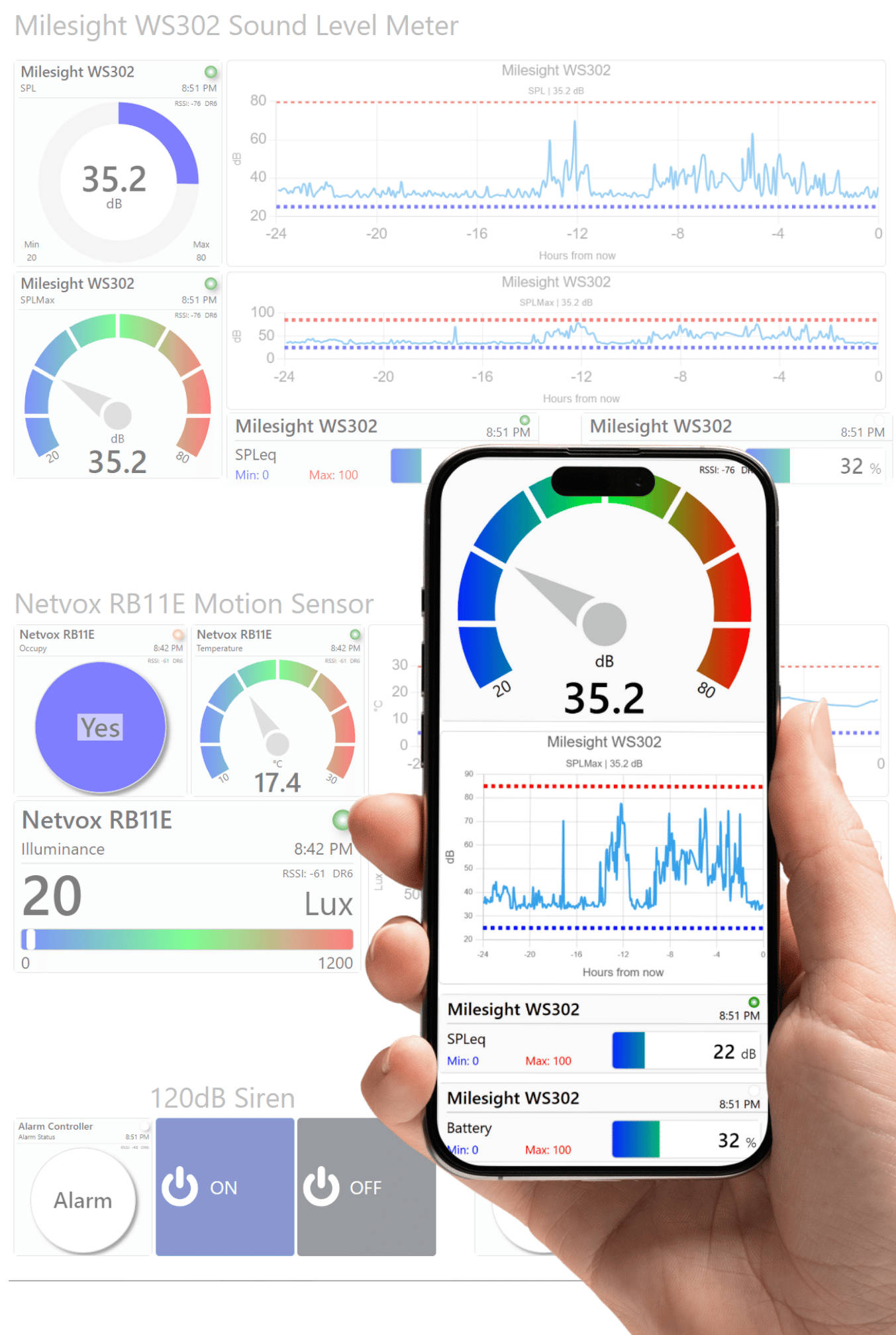

You’re in complete control of your security system through our IoT platform, that you can access from any device with an internet connection. You can assign notification groups to receive alerts on any event of your choosing and you can even select times that the alerts should be sent – you may not want to receive alerts outside working hours for example.

We have a huge range of sensor options available, and plenty of products available to create your own clever solutions. We recently had a customer who wired an IR beam to a Dragino LT22222L I/O controller used to monitor an open front farm shed. They even installed a siren that they can turn on and off remotely to deter trespassers at their discretion.

Dragino LDS02 Door/Window Sensor

The Dragino LDS02 is a LoRaWAN door/window sensor that detects open/close events and then sends its status it to a LoRaWAN network. The LDS02 is small in size (40 x 15 x 15mm) and is powered by a two standard AAA Alkaline batteries. In ideal LoRaWAN network coverage conditions, the LDS02 transmits up to 70,000 data records to the server for the life of the battery. Poor LoRaWAN network coverage will allow for the transmission of roughly 16,000 data records. The LDS02 product design allows for a battery life between 2 and 10 years. Once finally flat, the AAA batteries are straight forward to change.

LoRaWAN IoT Door and Wondow Sensor for Home and Business Sucurity Alarm
Netvox RB11E Human Movement Sensor

This node can detect human movement through its IR sensor, as well as light and temperature. An uplink is immediately sent to T2U when any movement is detected, which can be used to trigger alerts at any time, or only during certain times of the day. The ER14505 batteries are user replaceable with the overall life dependant on events. Downlink commands sent from T2U configure the device IR detection timing and settings.

LoRaWAN IoT PIR for home and business security
Netvox RB02I Panic Button

This battery powered device (AAA) is fitted with an Emergency Push button that will send an uplink to Telemetry2U as soon as the button is pressed. Telemetry2U can then send an Email/SMS or voice alert so the incident can be immediately investigated. It can easily be desk or wall mounted and comes with a waterproof silicone cover so is well suited for many fixed environments.

LoRaWAN IoT panic button for Home and Business Security
Netvox RA02A Smoke and Heat Detector

This smoke detector will sound a siren and immediately trigger an uplink when the smoke status changes. It also measures the temperature every 60 seconds and will immediately send an uplink if the temperature rises above 60C. These uplinks can be used to trigger either a voice, email or SMS alert when used with Telemetry2U. It runs on 2 x AAA Alkaline Batteries that are user changeable.

LoRaWAN IoT Smoke and Heat Detector

LoRaWAN Drives IoT Applications

Once you have a LoRaWAN gateway and a Telemetry2U account, an enormous range of plug-and-play LoRaWAN end-devices and sensors to monitor or control just about anything become readily available to you. The seamless integration between these end-devices and Telemetry2U’s IoT Platform unlocks an incredibly large variety of potential IoT applications that anyone can employ to make their world ‘smarter’ through broad connectivity.

The fact that you’re investing in a complete system that is capable of so many ‘things’; not just one thing, really is what makes Telemetry2U so unique. It’s dynamic, yet its affordable - we ensure the 'Internet of Things' is readily accessible to anyone and everyone, at a fair price point, with all the benefits and features this amazing technology has to offer managed in a single place - Telemetry2U.

If you would like to learn more on how Telemetry2U can help you get your operation on the IoT Cloud, please get in touch with us today.

LoRaWAN network with Telemetry2U
